Graphic MAX single colour

Main features of GR MAX Graphic Displays

	High resolution - 10 mm pixel pitch.		High luminosity of LEDs. Manual and automatic brightness control.
	Frontal service!		Energy-saving.
	Up to 65536 shades!		Numerous text and graphics effects for each display region.
	Displaying information In one many lines.		Include clock,calendar,thermometr, and humidity sensor!
	Animated texts,graphics and backgrounds.		Turns ON/OFF at a definite time.
	Panel border moving clockwise , anticlockwise,flashing, and static.		Weather proof.
	Modular construction.Enlargeable.		36 months warranty.
	Mask with a roofing for each diode!		Product of Poland.

Other Features of GR MAX Graphic Displays

	Computer-controlled via LAN as a standard or WIFI as an option.		Automatyczna synchronizacja czasu
	Data input from a flash drive.		Android and iOS
	The ability to control from any place in the world via the Internet.		Use all text fonts installed on you computer.
	Remote control.		Time-definite and day-definite displaying of messages.

Functions

Advantages of GR MAX GRAPHIC DISPLAYS

Readability of displayed content.

The high density of LEDs in conjunction with image shading and high brightness ensures high quality displayed text and images. Thanks to this, presented content is clear and readable even from a long distance.

Large opportunities.

Numerous effects, with the ability to display information even in a few lines or regions, in any language, animated text, graphics and backgrounds, dynamic and static border of display provide significant opportunities to display information. The total number of possible combinations is very large. As a result, advertising is not boring, it's constantly changing and it's dynamic so attracts the attention of spectators. The software allows you to load the selected image and video file formats.

Modular casing.

The units are built as a modular constructions, which allows to obtain the desired display format. You can expand the device or divide the big screen on several small ones, for ease of transport and installation. Displays have modules mounted from the front, so all maintenance can be performed from the front and in the case of a fault it is not necessary to remove the entire device.

Attractive features.

In addition to the text and graphics information, on the boards you can also display temperature, date and time. Such data are attractive because they strongly pay attention, and people interested in these parameters waiting for the desired information read the advertisement. The board has an automatic switching on and off with preset times so that can optimize more the cost of operating related to the consumption of electricity. Other advantages of displays is the ability to set a specific brightness at predetermined time, or optional automatic brightness control based on measurements from the sensor. Without a doubt, great opportunities is also the option to display selected information at specified times. This opens up the perspective for users of our devices to create daily or hourly informational campaigns and promotional activities. You can also display other information on business hours, and others out of the opening hours. When working with designing advertising useful functions are also variable speed effects, adjust the stop time and the appropriate location of texts.

Quality of devices.

Offered devices are high quality. They are made from lightweight and durable materials for optimum durability and resistance to weather conditions. The LEDs are protected with plastic masks with protective roofs on each diode, which provide protection against mechanical damage and improve the contrast of the display. All tables are CE certified.

Several ways to control.

LAN - as standard displays have a power cord with plug RJ45. With it, you can connect the device directly to the computer or turn it to the LAN, and then send the advertisement. If you connect the device to the network, it is possible to program device from any computer on the network.

Wi-Fi - Another way of communications is connection through Wi-Fi. With this method of communication you can program the display wirelessly via Wi-Fi. Display generates its own Wi-Fi network to which you must connect to be able uploading data to display. By default, the network is protected by a password. It is also possible to configure the Wi-Fi to automatically connect to another network within its range, e.g. to an existing network in the company, which will enable the management screen from any computer on the local network.

USB Flash Drive - Advertising is preparing in the program on your computer. Then export it to a file on your memory stick. Connect the USB stick with a project file that contains the ad then connect to the USB port on the display's cable. After plugging the media to the USB display, driver reads the data from the flash drive and saves them in the internal memory of the display. After copying the project, you can unplug the flash drive from the USB socket and close the connector.

IR remote control - Simple to control the operation of the display can be realized using the IR remote control. In contrast to previous methods of remote control has limited functionality and short range. With its use, you can turn on and off board, adjust the brightness and switch to specific projects in the spot.

Made in Poland, Made in EU.

The devices are designed and manufactured in Poland. Choosing Polish brand You support our technical thought and work in Poland and European Union. Our products are appreciated all over Europe and the World, because of their quality, functionality and capabilities. Easy access to spare parts, fast service, the opportunity of support even after the warranty period are undoubted
advantages and the reason of selection the Polish unit.

Technical support.

Choosing devices from our offer you gain access to the phone and e-mail support, which works for support of our customers.

Available colours

Display models

GRAPHIC DISPLAYS GR MAX height 16 cm
Model	Dimensions	Resolution	Weight	Average power consumption
GR102 MAX	64 x 16 cm	64 x 16 px	4 kg	8 W
GR103 MAX	96 x 16 cm	96 x 16 px	5 kg	12 W
GR104 MAX	128 x 16 cm	128 x 16 px	6 kg	16 W
GR105 MAX	160 x 16 cm	160 x 16 px	7 kg	20 W
GR106 MAX	192 x 16 cm	192 x 16 px	8 kg	24 W
GR107 MAX	224 x 16 cm	224 x 16 px	10 kg	28 W
GR108 MAX	256 x 16 cm	256 x 16 px	11 kg	32 W
GR109 MAX	288 x 16 cm	288 x 16 px	13 kg	36 W
GR110 MAX	320 x 16 cm	320 x 16 px	14 kg	40 W
GR111 MAX	352 x 16 cm	352 x 16 px	15 kg	44 W
GR112 MAX	384 x 16 cm	384 x 16 px	17 kg	48 W
...	...	...	...	...

GRAPHIC DISPLAYS GR MAX height 32 cm
Model	Dimensions	Resolution	Weight	Average power consumption
GR202 MAX	64 x 32 cm	64 x 32 px	6 kg	16 W
GR203 MAX	96 x 32 cm	96 x 32 px	8 kg	24 W
GR204 MAX	128 x 32 cm	128 x 32 px	11 kg	32 W
GR205 MAX	160 x 32 cm	160 x 32 px	14 kg	40 W
GR206 MAX	192 x 32 cm	192 x 32 px	17 kg	48 W
GR207 MAX	224 x 32 cm	224 x 32 px	20 kg	56 W
GR208 MAX	256 x 32 cm	256 x 32 px	22 kg	64 W
GR209 MAX	288 x 32 cm	288 x 32 px	25 kg	72 W
GR210 MAX	320 x 32 cm	320 x 32 px	28 kg	80 W
GR211 MAX	352 x 32 cm	352 x 32 px	31 kg	88 W
GR212 MAX	384 x 32 cm	384 x 32 px	34 kg	96 W
...	...	...	...	...

GRAPHIC DISPLAYS GR MAX height 48 cm
Model	Dimensions	Resolution	Weight	Average power consumption
GR302 MAX	64 x 48 cm	64 x 48 px	8 kg	24 W
GR303 MAX	96 x 48 cm	96 x 48 px	13 kg	36 W
GR304 MAX	128 x 48 cm	128 x 48 px	17 kg	48 W
GR305 MAX	160 x 48 cm	160 x 48 px	21 kg	60 W
GR306 MAX	192 x 48 cm	192 x 48 px	25 kg	72 W
GR307 MAX	224 x 48 cm	224 x 48 px	29 kg	84 W
GR308 MAX	256 x 48 cm	256 x 48 px	34 kg	96 W
GR309 MAX	288 x 48 cm	288 x 48 px	38 kg	108 W
GR310 MAX	320 x 48 cm	320 x 48 px	42 kg	120 W
GR311 MAX	352 x 48 cm	352 x 48 px	46 kg	132 W
GR312 MAX	384 x 48 cm	384 x 48 px	50 kg	144 W
...	...	...	...	...

GRAPHIC DISPLAYS GR MAX height 64 cm
Model	Dimensions	Resolution	Weight	Average power consumption
GR402 MAX	64 x 64 cm	64 x 64 px	11 kg	32 W
GR403 MAX	96 x 64 cm	96 x 64 px	17 kg	48 W
GR404 MAX	128 x 64 cm	128 x 64 px	22 kg	64 W
GR405 MAX	160 x 64 cm	160 x 64 px	28 kg	80 W
GR406 MAX	192 x 64 cm	192 x 64 px	34 kg	96 W
GR407 MAX	224 x 64 cm	224 x 64 px	39 kg	112 W
GR408 MAX	256 x 64 cm	256 x 64 px	45 kg	128 W
GR409 MAX	288 x 64 cm	288 x 64 px	50 kg	144 W
GR410 MAX	320 x 64 cm	320 x 64 px	56 kg	160 W
GR411 MAX	352 x 64 cm	352 x 64 px	62 kg	176 W
GR412 MAX	384 x 64 cm	384 x 64 px	67 kg	192 W
...	...	...	...	...

GRAPHIC DISPLAYS GR MAX height 80 cm
Model	Dimensions	Resolution	Weight	Average power consumption
GR503 MAX	96 x 80 cm	96 x 80 px	21 kg	60 W
GR504 MAX	128 x 80 cm	128 x 80 px	28 kg	80 W
GR505 MAX	160 x 80 cm	160 x 80 px	35 kg	100 W
GR506 MAX	192 x 80 cm	192 x 80 px	42 kg	120 W
GR507 MAX	224 x 80 cm	224 x 80 px	49 kg	140 W
GR508 MAX	256 x 80 cm	256 x 80 px	56 kg	160 W
GR509 MAX	288 x 80 cm	288 x 80 px	63 kg	180 W
GR510 MAX	320 x 80 cm	320 x 80 px	70 kg	200 W
GR511 MAX	352 x 80 cm	352 x 80 px	77 kg	220 W
GR512 MAX	384 x 80 cm	384 x 80 px	84 kg	240 W
...	...	...	...	...

GRAPHIC DISPLAYS GR MAX height 96 cm
Model	Dimensions	Resolution	Weight	Average power consumption
GR603 MAX	96 x 96 cm	96 x 96 px	25 kg	72 W
GR604 MAX	128 x 96 cm	128 x 96 px	34 kg	96 W
GR605 MAX	160 x 96 cm	160 x 96 px	42 kg	120 W
GR606 MAX	192 x 96 cm	192 x 96 px	50 kg	144 W
GR607 MAX	224 x 96 cm	224 x 96 px	59 kg	168 W
GR608 MAX	256 x 96 cm	256 x 96 px	67 kg	192 W
GR609 MAX	288 x 96 cm	288 x 96 px	76 kg	216 W
GR610 MAX	320 x 96 cm	320 x 96 px	84 kg	240 W
GR611 MAX	352 x 96 cm	352 x 96 px	92 kg	264 W
GR612 MAX	384 x 96 cm	384 x 96 px	101 kg	288 W
...	...	...	...	...

GRAPHIC DISPLAYS GR MAX height 112 cm
Model	Dimensions	Resolution	Weight	Average power consumption
GR703 MAX	96 x 112 cm	96 x 112 px	29 kg	84 W
GR704 MAX	128 x 112 cm	128 x 112 px	39 kg	112 W
GR705 MAX	160 x 112 cm	160 x 112 px	49 kg	140 W
GR706 MAX	192 x 112 cm	192 x 112 px	59 kg	168 W
GR707 MAX	224 x 112 cm	224 x 112 px	69 kg	196 W
GR708 MAX	256 x 112 cm	256 x 112 px	78 kg	224 W
GR709 MAX	288 x 112 cm	288 x 112 px	88 kg	252 W
GR710 MAX	320 x 112 cm	320 x 112 px	98 kg	280 W
GR711 MAX	352 x 112 cm	352 x 112 px	108 kg	308 W
GR712 MAX	384 x 112 cm	384 x 112 px	118 kg	336 W
...	...	...	...	...

GRAPHIC DISPLAYS GR MAX height 128 cm
Model	Dimensions	Resolution	Weight	Average power consumption
GR803 MAX	96 x 128 cm	96 x 128 px	34 kg	96 W
GR804 MAX	128 x 128 cm	128 x 128 px	45 kg	128 W
GR805 MAX	160 x 128 cm	160 x 128 px	56 kg	160 W
GR806 MAX	192 x 128 cm	192 x 128 px	67 kg	192 W
GR807 MAX	224 x 128 cm	224 x 128 px	78 kg	224 W
GR808 MAX	256 x 128 cm	256 x 128 px	90 kg	256 W
GR809 MAX	288 x 128 cm	288 x 128 px	101 kg	288 W
GR810 MAX	320 x 128 cm	320 x 128 px	112 kg	320 W
GR811 MAX	352 x 128 cm	352 x 128 px	123 kg	352 W
GR812 MAX	384 x 128 cm	384 x 128 px	134 kg	384 W
...	...	...	...	...

Additional options:

Options

Shading function controller "FC" (for the display above 1125 EUR, the "FC" driver is free)

Clock , calendar,thermometer

LAN module

USB Pendrive module

WiFi module

3G/4G(LTE) module (only when using "FC" controller)

Remote controller

Humidity sensor (in case of using „FC” controller - 0 EUR)

GPS time synchronization

LED colour: RED

LED colour: AMBER, GREEN, BLUE, WHITE

Mounting rack 16 cm*

Mounting rack 32 cm *

Mounting rack 48 cm *

Non standard mounting rack - customized design

*standard rack for displays no longer then 160cm

Wires

Power cable extension by 1 meter (standard cable lenght: 5 m)

LAN cable extension by 1 meter (standard cable lenght: 5 m)

Additional option 2

A new feature is the option of equipping the display with a wind speed and direction sensor as well as an PM2.5 and PM10 air pollution sensor. Such data is attractive because it strongly attracts attention, and people interested in these parameters while waiting for the requested information also read the advertisement. Indications from any sensor can be displayed at any time and in a specified place on the screen, the font, its type and size are editable. At the same time, graphics can be displayed in the background or a movie can be played - it all depends on the imagination .

The following sensors can be used in displays without the "FC" controller:
Photo	Option
	SENSOR: PM2,5 i PM10
Foto	Opcja
	CONTROL BOX for SENSORS (required to support the following sensors)
	SENSOR: PM2,5 and PM10, temperature, humidity, brightness, noise
	SENSOR : wind speed
	SENSOR : wind direction
	MOUNTING RACK - when purchasing the whole set

*

The information and prices contained in this catalog are for illustration only and do not constitute grounds for treating them as a commercial offer within the meaning of the Civil Code

Visual drawing

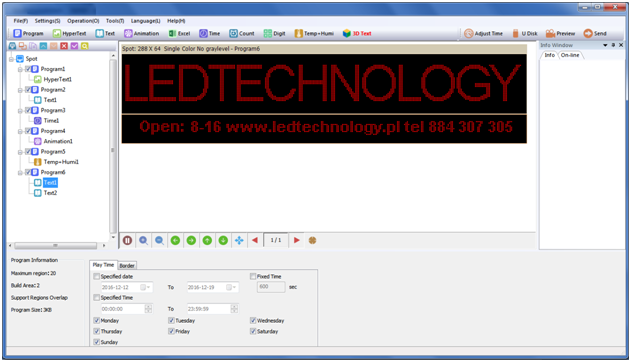

Software to manage displays

With every devices, each customer receives the software to control the display. The software is compatible with any version of the Windows operating system (XP, Vista, 7, 8, 10, 32 bit, 64 bit).

Exampled technical drawing

Gallery

- GR105 MAX (160 x 16 cm)
- GR105 MAX (160 x 16 cm)
- GR105 MAX (160 x 16 cm)
- GR105 MAX (160 x 16 cm)
- GR105 MAX (160 x 16 cm)
- GR105 MAX (160 x 16 cm)
- GR105 MAX (160 x 16 cm)
- GR105 MAX (160 x 16 cm)
- GR105 MAX (160 x 16 cm)
- GR105 MAX (160 x 16 cm)
- GR205 MAX (160 x 32 cm)
- GR205 MAX (160 x 32 cm)
- GR205 MAX (160 x 32 cm)
- GR205 MAX (160 x 32 cm)
- GR205 MAX (160 x 32 cm)
- GR205 MAX (160 x 32 cm)
- GR305 MAX (160 x 48 cm)
- GR305 MAX (160 x 48 cm)
- GR305 MAX (160 x 48 cm)
- GR305 MAX (160 x 48 cm)
- GR305 MAX (160 x 48 cm)
- GR305 MAX (160 x 48 cm)
- GR405 MAX (160 x 64 cm)
- GR405 MAX (160 x 64 cm)
- GR405 MAX (160 x 64 cm)
- GR405 MAX (160 x 64 cm)
- GR405 MAX (160 x 64 cm)
- GR405 MAX (160 x 64 cm)
