LEDTECHNOLOGY Sp. z o.o. sp. k.
Polczynska street 10C
78-200 Białogard
POLAND

Stopwatches


Main features of STOPWATCHES and SCOREBOARDS


Wysoka rozdzielczość

High resolution!

Zliczanie czasu w górę i dół. Countdown and count up.
pełny_zakres_barw

Mono, multi or full colour.

Praca w trybie tablicy sportowej  lub informacyjnej.

Scoreboard and advertizing mode



modułowa budowa

Modular construction.

Enlargeable. Frontal service!

Wyświetlanie informacji w jednej lub kilku liniach. Displaying information in multi lines.
duża jasnośc diod

High luminosity of LEDs. Manual and

automatic brightness control.

wbudowany _zegar_kalendarz_termometr

Include clock, calendar,

thermometer, and humidity sensor!

energooszczdne Energy-saving. możliwość programowania czasu włączenia i wyłączenia

Turns ON/OFF at a definite time.

serwis od frontu Front service! odporne na zmieniające sie warunki atmosferyczne Weather proof.
maskownice z daszkami ochronnymi na kazdej diodzie

Mask with a roofing for each diode!!!

Gwarancja 24 miesiące. 24 months warranty.
Obudowa typu SLIM. SLIM casing ! Polski producent Product of Poland.

Other features of STOPWATCHES and SCOREBOARDS.

Sterowanie z komputera po LAN  w standardzie lub opcjonalnie  przez WiFi Sterowanie z komputera po LAN
w standardzie lub opcjonalnie
przez WiFi.
Sterowanie z pilota

Remote control by long range remote controller.

Sterowanie z urządzenia z systemem Android np. smartfona !

Remote control by Android device.

Możliwość zmiany czcionki.

Customized fonts.

Możliwość sterowania Internet  i moduł 3G. Control via Internet with 3G/4G modules.  43

 Sound alarms available


Main advantages of STOPWATCHES and SCOREBOARDS

Readability of displayed content.



The high density of LEDs in conjunction with image shading and high brightness ensures high quality displayed text and images. Thanks to this, presented content is  clear and readable even from a long distance.

Large opportunities.

Offered displays can be single, multiple or full color. It gives you the ability to choose the color of individual information. Screens can display both modes – scoreboard or advertising. The user has the option to easy  switch between  these modes.

Modular casing.

The units are built as a modular constructions, which allows to obtain the desired display format. You can expand the device or divide the big screen on several small ones, for ease of transport and installation. Displays have modules mounted from the front, so all maintenance can be performed from the front and in the case of a fault it is not necessary to remove the entire device.

Attractive features.

In addition to the  text and graphics information, on the boards you can also display temperature, date and time. Displays can be easily switch on and off with radio remote controller

Quality of devices.



Offered devices are high quality. They are made from lightweight and durable materials for optimum durability and resistance to weather conditions. The LEDs are protected with plastic masks with protective roofs on each diode, which provide protection against mechanical damage and improve the contrast of the display. All displays are CE certified.

Control ways.



Radio remote control - Simple control of the display can be achieved by remote control. The undoubted advantage is a large range of action of up to 300 meters in open field.

Android - Another method of managing the display is controlling it with a dedicated application on Android device, eg. Your smartphone or tablet. Dedicated application can easily  manage textboxes, which can show e.g. the route, route number, a places the route goes through.

LAN - as a standard displays have a power cord with plug RJ45. With it, you can connect the device directly to the computer or to the local network, and then send the advertisement. If you connect the device to the network, it is possible to program device from any computer in the net. Dedicated application can easily  manage textboxes, which can show e.g. the route, route number, a places the route goes through.

Wi-Fi - Another way of communications is connection through Wi-Fi. With this method of communication you can program the display wirelessly via Wi-Fi. Display generates its own Wi-Fi network to which you must connect to be able uploading data to display. By default, the network is protected by a password.


Made in Poland, Made in EU.

The devices are designed and manufactured in Poland. Choosing Polish brand You support our technical thought and work in Poland and European Union. Our products are appreciated all over Europe and the World, because of their quality, functionality and capabilities. Easy access to spare parts, fast service, the opportunity of support even after the warranty period are undoubted advantages and the reason of selection the Polish unit.

Technical support.

Choosing devices from our offer you gain access to the phone and e-mail support, which works for support of our customers.




Display models

Stopwatches and scoreboard in single colour P10 technology,  regular casing.  Exampled dimensions
Model Dimensions Character
height
Resolution  Weight Average power
consumption
ST101 32 x 16 cm do 16 cm 32 x 16 px 3 kg 4 W
ST102 64 x 16 cm do 16 cm 64 x 16 px 4 kg 8 W
ST103 96 x 16 cm do 16 cm 96 x 16 px 5 kg 12 W
ST104 128 x 16 cm do 16 cm 128 x 16 px 6 kg 16 W
ST201 32 x 32 cm do 32 cm 32 x 32 px 4 kg 8 W
ST202 64 x 32 cm do 32 cm 64 x 32 px 6 kg 16 W
ST203 96 x 32 cm do 32 cm 96 x 32 px 8 kg 24 W
ST204 128 x 32 cm do 32 cm 128 x 32 px 11 kg 32 W
ST302 64 x 48 cm do 48 cm 64 x 48 px 8 kg 24 W
ST303 96 x 48 cm do 48 cm 96 x 48 px 13 kg 36 W
ST304 128 x 48 cm do 48 cm 128 x 48 px 17 kg 48 W
ST305 160 x 48 cm do 48 cm 160 x 48 px 21 kg 60 W
ST306 192 x 48 cm do 48 cm 192 x 48 px 25 kg 72 W
ST402 64 x 64 cm do 56 cm 64 x 64 px 11 kg 32 W
ST403 96 x 64 cm do 56 cm 96 x 64 px 17 kg 48 W
ST404 128 x 64 cm do 56 cm 128 x 64 px 22 kg 64 W
ST405 160 x 64 cm do 56 cm 160 x 64 px 28 kg 80 W
ST406 192 x 64 cm do 56 cm 192 x 64 px 34 kg 96 W

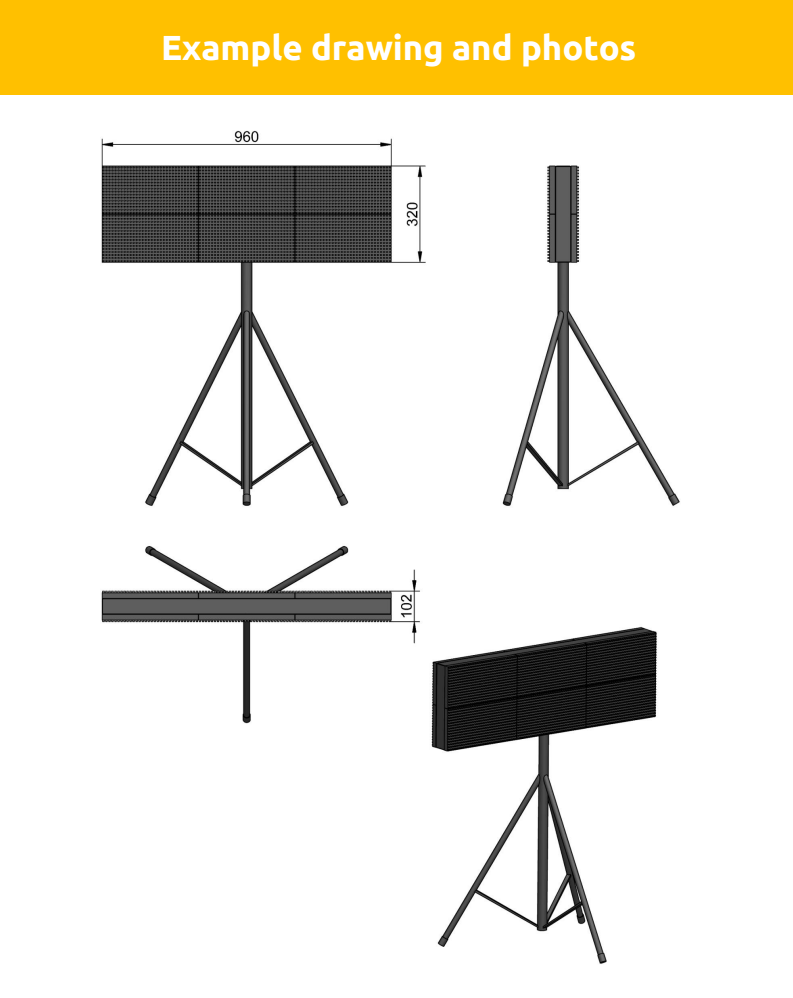

Exampled technical drawing



ST_Stoper

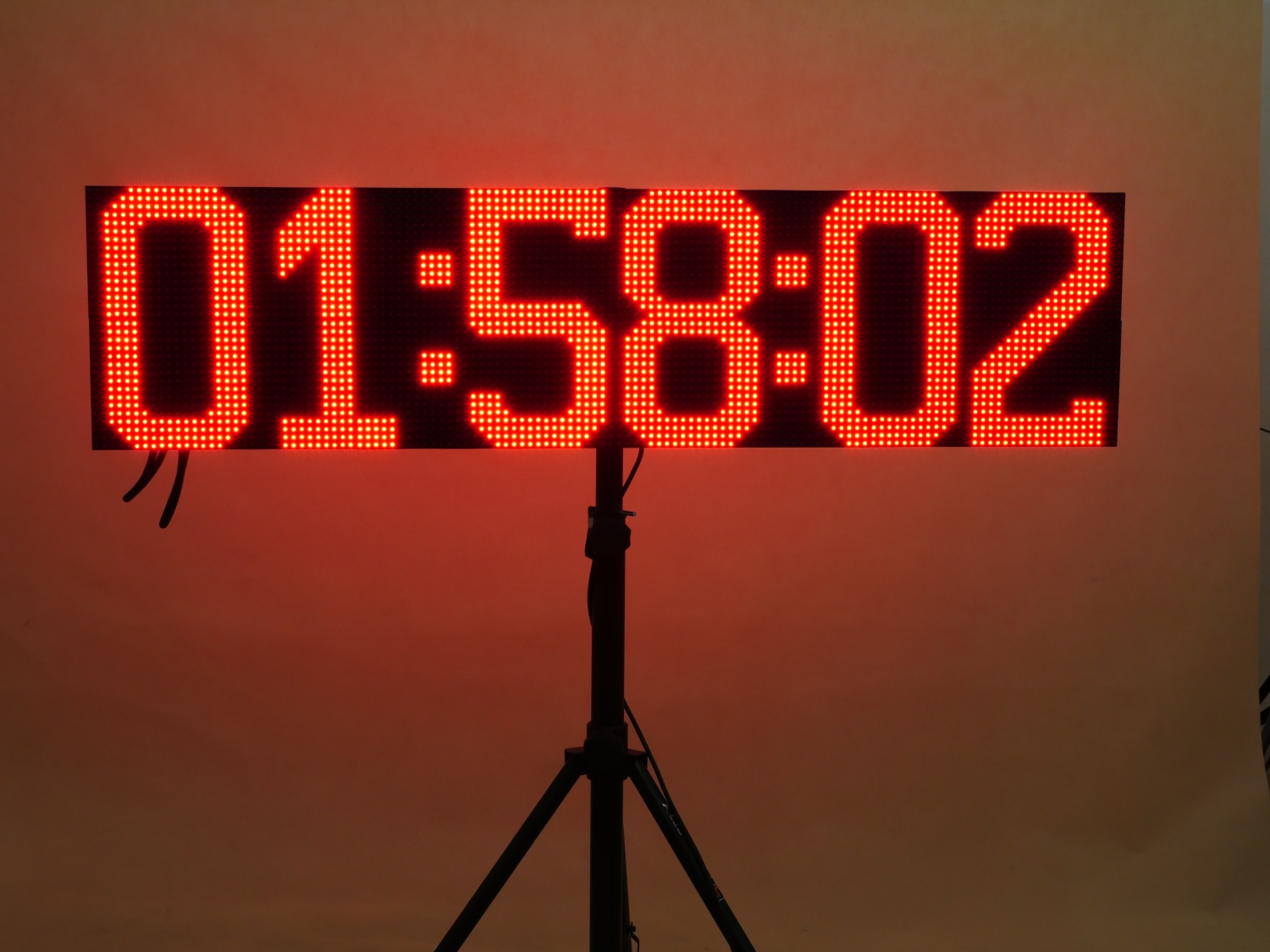

Example of ST204 implementation.
